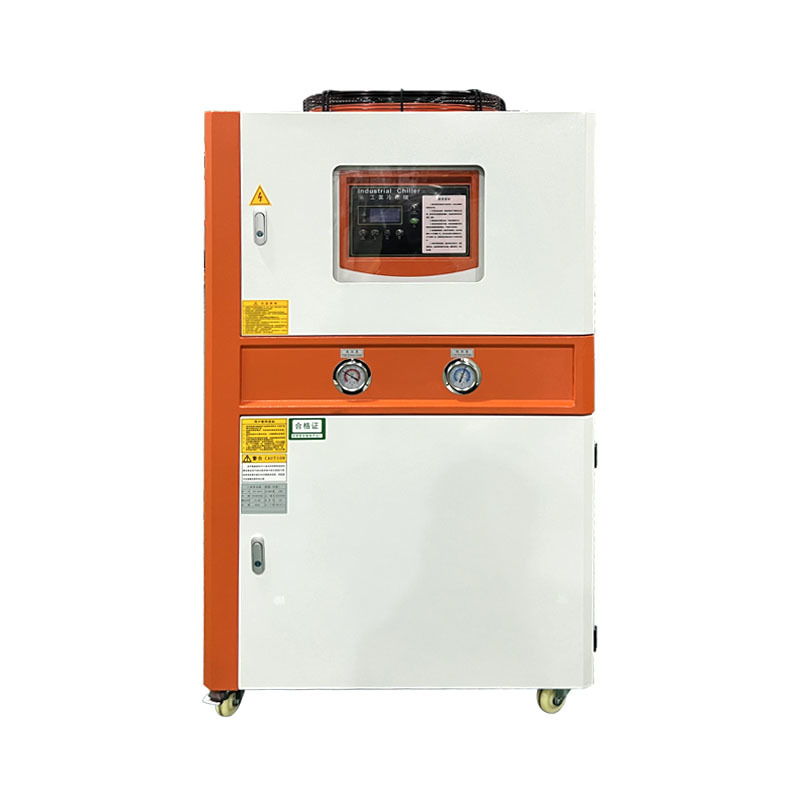

10HP air-cooled chiller low temperature -30℃

This 10 HP air-cooled low-temperature chiller can cool ethylene glycol down to -30°C, making it ideal for certain industrial applications. Its core features are summarized below:

Feature Dimension                                         describe

Compressor brand and type                          German Bitzer semi-hermetic piston compressor

Rated power                                                   Approximately 7.5kW (10HP)

Outlet water temperature range                     35℃ ~ -60℃

refrigerant                                                       R404A

Refrigerant                                                     Ethylene glycol aqueous solution

Control and protection                                   LCD human-machine interface, multiple safety protections

Core features and technical advantages

• Powerful and reliable "heart": using German Bitzer semi-hermetic piston compressor. Bitzer compressor is well-known in the refrigeration industry for its high performance, high reliability and stable operation, especially suitable for medium and low temperature applications. Its good quality and reliable operation
• Efficient heat exchange system: The unit is usually equipped with a high-efficiency finned air-cooled condenser, which has high heat exchange efficiency and long service life. The evaporator can be designed for corrosion resistance according to the properties of the refrigerant (such as corrosiveness).
• Intelligent control and comprehensive protection: Modern industrial chillers often feature a liquid crystal display (LCD) human-machine interface (HMI) for easy operation and a clear overview of operating status. Multiple safety protection devices are integrated into the units, typically including high and low voltage protection, motor overload protection, phase loss/reverse phase protection, antifreeze protection, and water flow protection, ensuring safe operation under various operating conditions.
• Adaptable and convenient design: The air-cooled design eliminates the need for additional cooling towers and cooling water pumps, reducing installation complexity and supporting infrastructure costs. The unit can be equipped with its own water tank and circulating water pump, depending on cooling capacity. The unit is typically designed for 24-hour operation, meeting the cooling needs of continuous production processes.
•


Application Scenario

This type of chiller, which can provide a low temperature of -30°C, is commonly used in the following areas:

• Chemical industry: low-temperature cooling of reactors and material crystallization processes.
• Medicine and bioengineering: low-temperature extraction, freeze-drying, and low-temperature storage of drugs.
• Food processing: quick freezing (IQF), low temperature refrigeration.
• Low-temperature freezing and cold storage: Provide the cooling capacity required for low-temperature warehouses.
• Others: Environmental test chambers, laser technology, vacuum coating and other processes that require low-temperature cooling.
•
